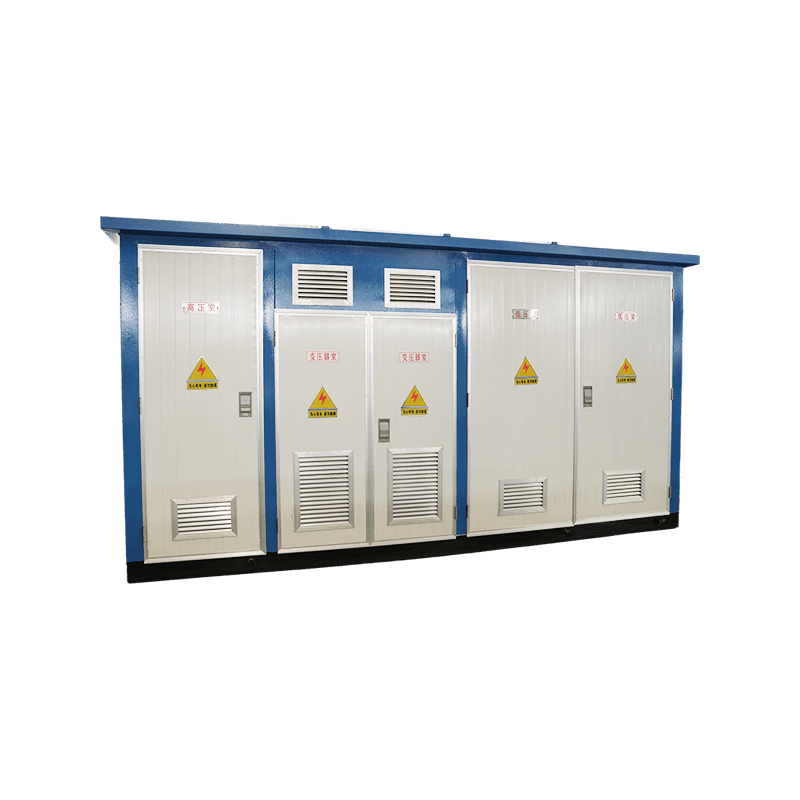

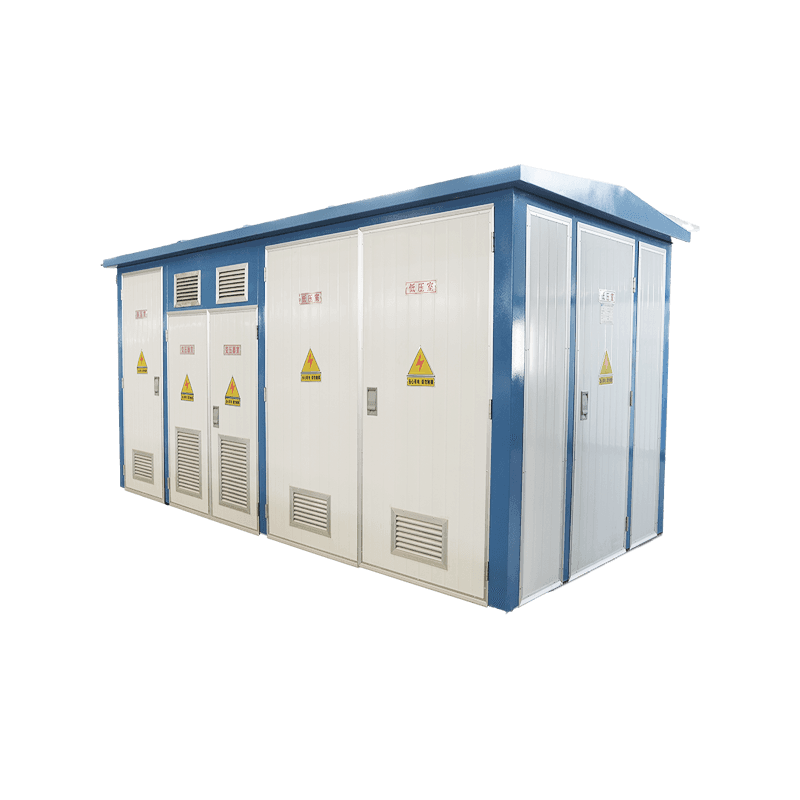

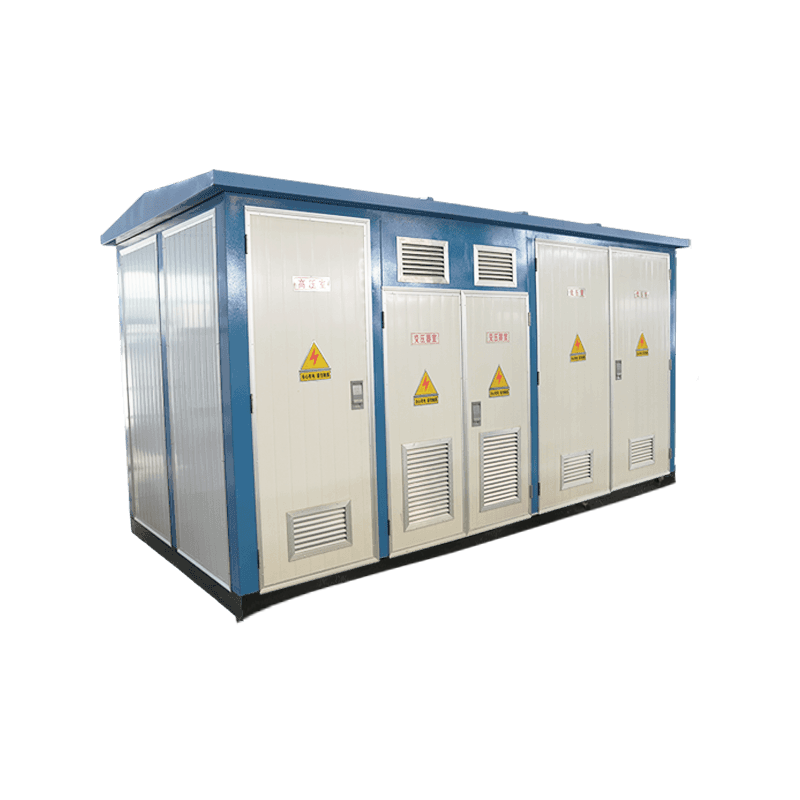

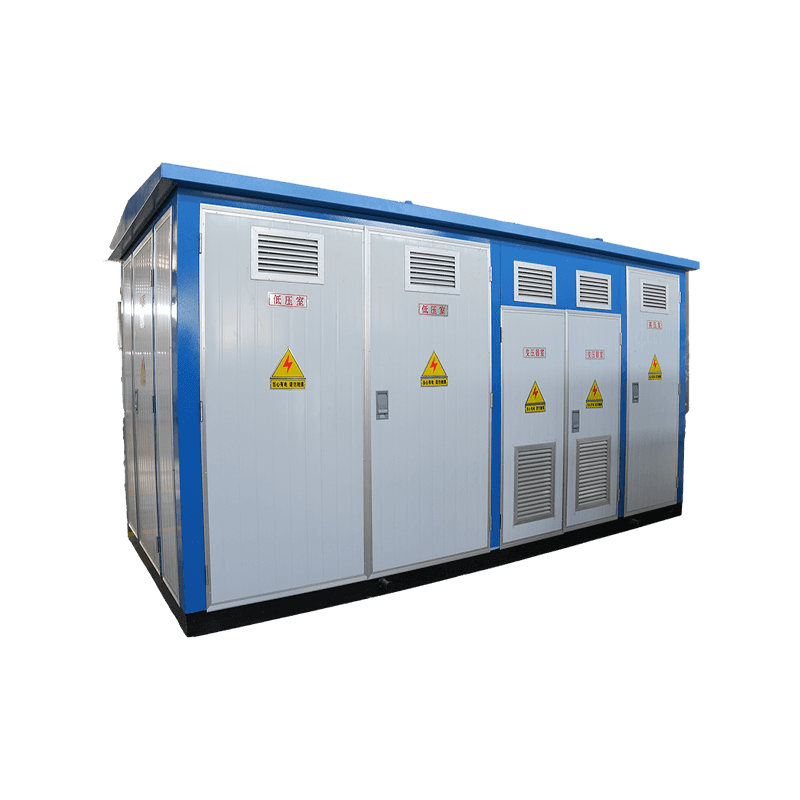

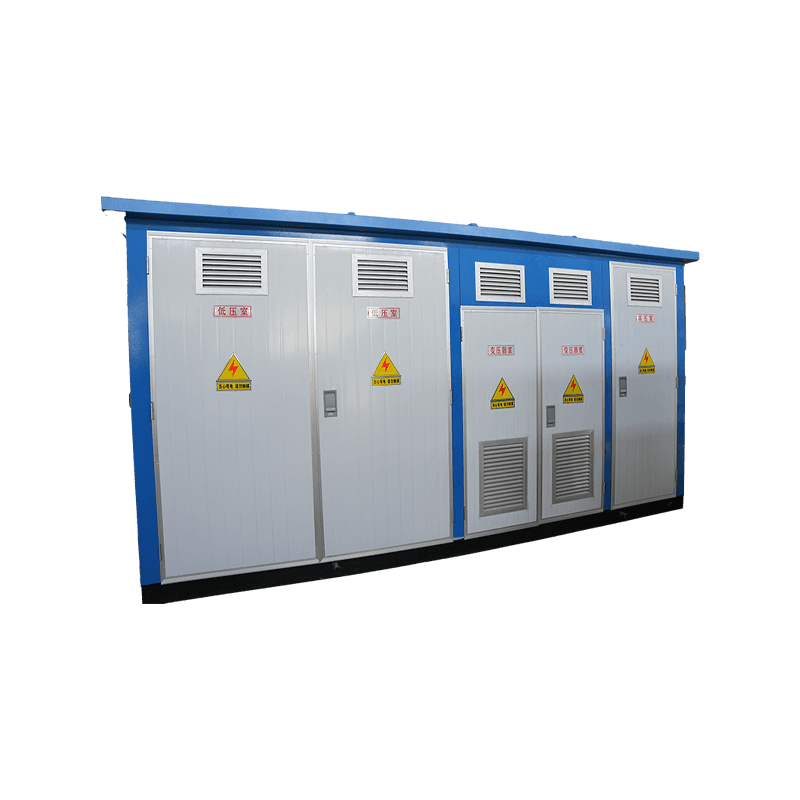

YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation
YB Type Pre-Installed Substation

YB Type Pre-Installed Substation

Product overview: YB-type high-voltage/low-voltage pre-installed substation is a compact complete set of power distribution equipment that integrates high-voltage electrical appliances, power transformers, and low-voltage electrical equipment. The device has the characteristics of a strong complete set, compact structure, small size, easy to move, safe and reliable operation, easy maintenance, beautiful shape, etc. It is a new type of power distribution device.Product characteristics: All the equipment is supplied by the manufacturer in a complete set, responsible for the completion of the design, manufacturing, final assembly, and secondary wiring in the factory, to go through the type test and factory inspection test, can be safely and smoothly transported to the user site, complete sets of strong, small size, save land area, site selection, safe and fast, power cycle, clean appearance, strong adaptability to the environment, Can coordinate with the surrounding environment. It can penetrate the middle voltage load center, reduce network loss, and improve the power supply quality. Save funds and manpower, less investment, quick effect, no need for infrastructure investment, reduce duty personnel, long maintenance interval cycle, improve safe operation reliability. To meet the requirements of modern urban power in the ground project, the substation can be reused in different places after use, without repeated investment. Adapt to the scene: Urban public power distribution, high-rise buildings, residential areas, ports, oil fields, parks, stations, airports, subways, highways, and other power supply places.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Parameter
  • Contact Us

  • Name

    		 item Unit Argument
    High voltage element Rated frequency

    Hz

    50/60



    		 Rated voltage

    kv

    12(24)



    		 Power frequency withstand voltage to ground and phase

    kv

    42(65)



    		 Lightning impulse withstand voltage to ground and phase

    kv

    75(125)



    		 Rated current

    A

    630



    		 Rated short-time withstand current

    kA/2S

    20(16)

    Low-voltage element

    		 Rated peak withstand current

    kA

    50(40)



    Rated voltage

    v

    400



    		 Rated current of main loop

    A

    100~4000



    		 Rated short-time withstand current

    kA

    15~50



    Rated peak withstand current

    kA

    20~105

    Transformer

    Rated capacity

    kVA

    50~2500



    Tapping range



    ±2x2.5% or ±5%



    Coupling group



    D, yn11 or Y, no



    Noise

    dB

    ≤55



    Case protection class



    IP33D

Related Products

About HUBANG

Jiangsu Beichen Hubang Electric Power Co., Ltd. is a professional manufacturer with 16 years of transformer manufacturing experience.

Our Company is China YB Type Pre-Installed Substation Suppliers and YB Type Pre-Installed Substation Factory. In order to better respond to the market situation, vigorously invest in silicon steel production projects, as the upstream product of transformers, silicon steel production and manufacturing project Silicon steel production and manufacturing project will be completed in two phases, the of the project has been tested in March 2022, to achieve an annual output of 25,000 tons of silicon steel, the second phase of the project will cooperate with Wisco to develop more high-end brands, silicon steel production capacity is expected to reach 80,000 tons. After the full volume of the project, the transformer industry will achieve a larger scale and achieve a stronger competitive advantage with the high-quality development of the manufacturing industry. Secondly, our company has developed a core intelligent stacking machine after three years to improve the quality and efficiency of iron core stacking. Last year, our company introduced the industrial precision welding robot arm to improve the welding process of transformer oil tank and complete the welding work of transformer oil tank with high quality and quantity.

Finally, Hubang Power's new factory intelligent workshop will be ready to put into operation in 2024, to achieve the full line of intelligent production of transformers as much as possible, which will greatly improve the efficiency of transformer products and increase the quality of related products.

Mission: Make power transmission safer and more energy efficient, and promote the development of China's high-end power equipment industry.
Vision: To become a highly trusted power equipment manufacturer.
Core values: scientific and technological innovation, unity and cooperation, continuous struggle, harmonious coexistence.
Jiangsu Beichen Hubang Electric Power Co., Ltd.

We’re a reliable partner that shapes our expertise into success for your project.

Certificate Of Honor

News
Industry Knowledge
1. Why Choose YB Type Pre-Installed Substations for Seamless Integration into Your Power Network?
Choosing YB Type Pre-Installed Substations signifies a commitment to a power distribution solution that excels in both reliability and efficiency. The secret lies in the meticulous engineering and thoughtful design that these substations boast.
YB Type Substations are engineered with a modular approach, allowing for easy customization based on specific project requirements. For example, in an urban setting where space is often limited, YB Type Substations offer a compact design without compromising performance. The modular construction ensures flexibility, enabling the substations to seamlessly integrate into diverse power network configurations.
Furthermore, YB Type Substations are equipped with advanced monitoring and control systems. This means real-time data on key performance metrics is readily available, empowering operators to proactively address potential issues and optimize the system's efficiency. For instance, in a scenario where demand suddenly spikes, the smart monitoring system of YB Type Substations allows for swift adjustments to ensure continuous and reliable power supply.
The robustness of the substations is evident in their ability to withstand varying environmental conditions. Whether deployed in regions with extreme temperatures or challenging terrain, YB Type Substations are designed to perform consistently, ensuring uninterrupted power distribution.

2. What Innovative Features Set YB Type Pre-Installed Substations Apart in the Evolving Energy Landscape?
The energy landscape is evolving, and YB Type Pre-Installed Substations are at the forefront of innovation. One standout feature is their utilization of eco-friendly and high-performance materials. For example, the insulation materials used in YB Type Substations contribute not only to enhanced performance but also align with global sustainability goals. This reflects a commitment to reducing environmental impact and promoting a greener approach to power distribution.
YB Type Substations also leverage cutting-edge digital technologies. Consider the incorporation of digital sensors and communication protocols that enable real-time monitoring. In practical terms, this means that the substations can detect anomalies or potential failures instantly. For instance, if there's an abnormal surge in voltage, the smart system triggers a response to mitigate the issue before it affects the entire power network.
Additionally, YB Type Substations are designed to facilitate seamless integration with renewable energy sources. With the global shift towards cleaner energy, these substations can efficiently manage the fluctuations associated with renewable power generation. This adaptability ensures that power distribution remains stable even as the energy mix evolves.

3. How Can YB Type Pre-Installed Substations Streamline Your Power Infrastructure Upgrade?
Embarking on a power infrastructure upgrade is a complex task, and YB Type Pre-Installed Substations are engineered to simplify the process. Consider the streamlined installation procedures they offer. The pre-installed nature of these substations significantly reduces on-site assembly time, minimizing disruptions to the existing power infrastructure. As an example, in a scenario where a rapid upgrade is required to meet increased energy demand, YB Type Substations can be efficiently installed without prolonged downtime.
Moreover, YB Type Substations optimize space utilization. Their compact design ensures that they can be strategically placed in areas where space is at a premium. This is particularly beneficial in urban environments where available real estate for power infrastructure is limited. As an illustration, imagine a city undergoing expansion where land is scarce – YB Type Substations can be installed in a space-efficient manner to support the growing energy needs without compromising on performance.
