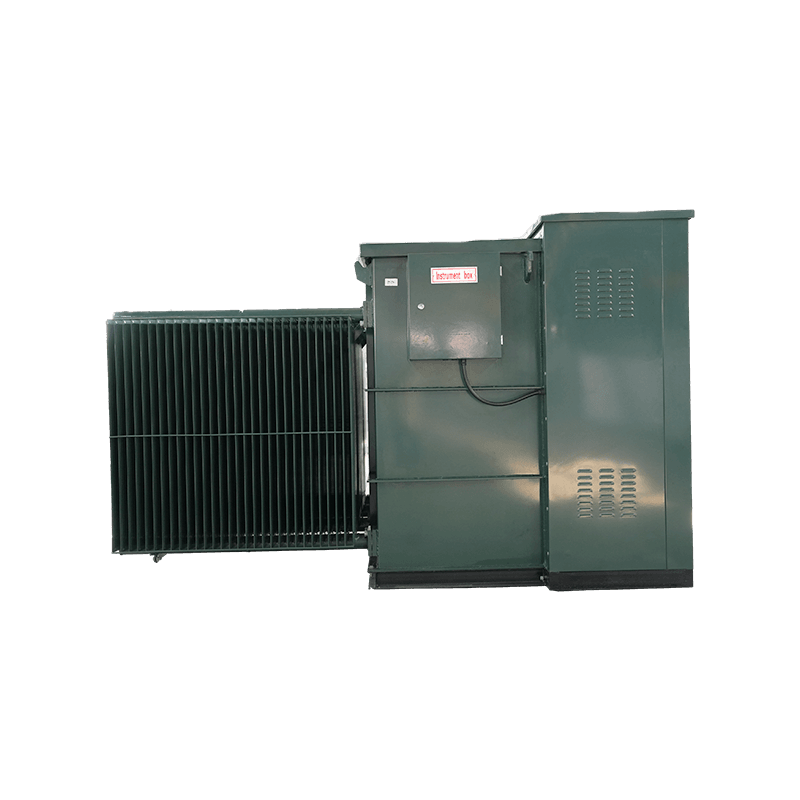

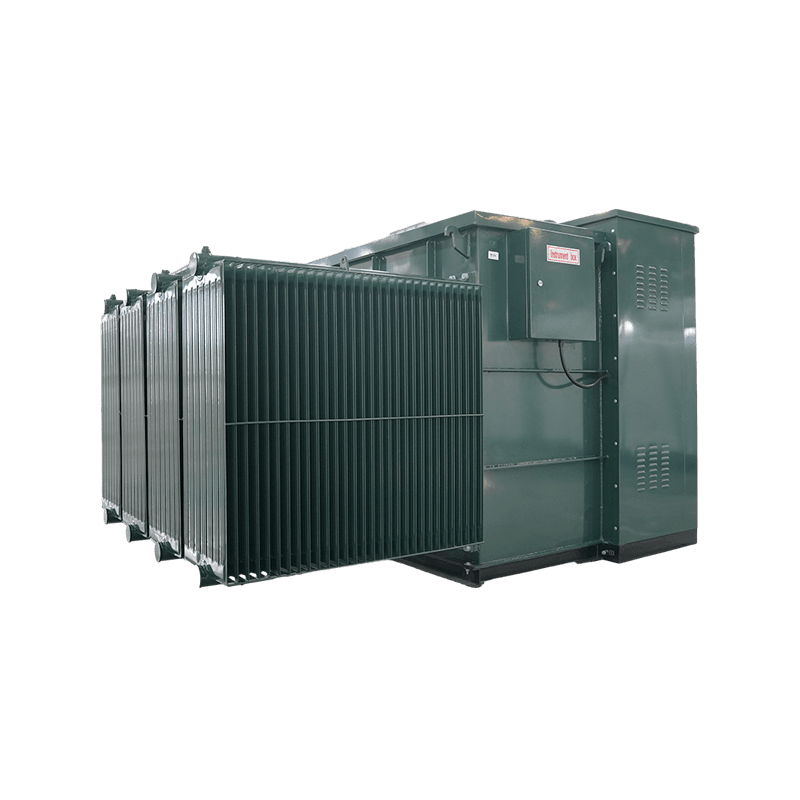

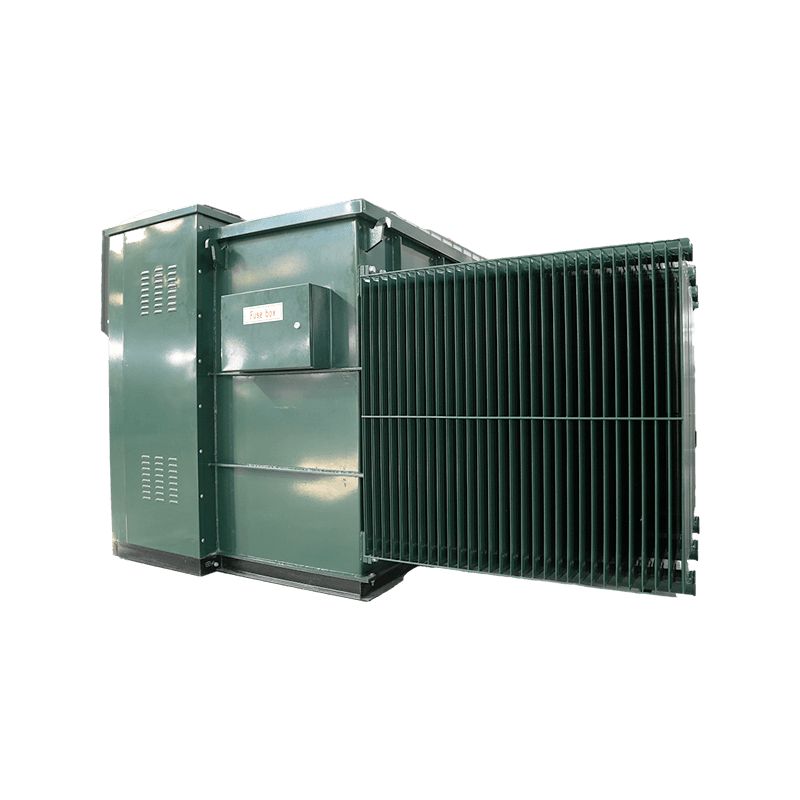

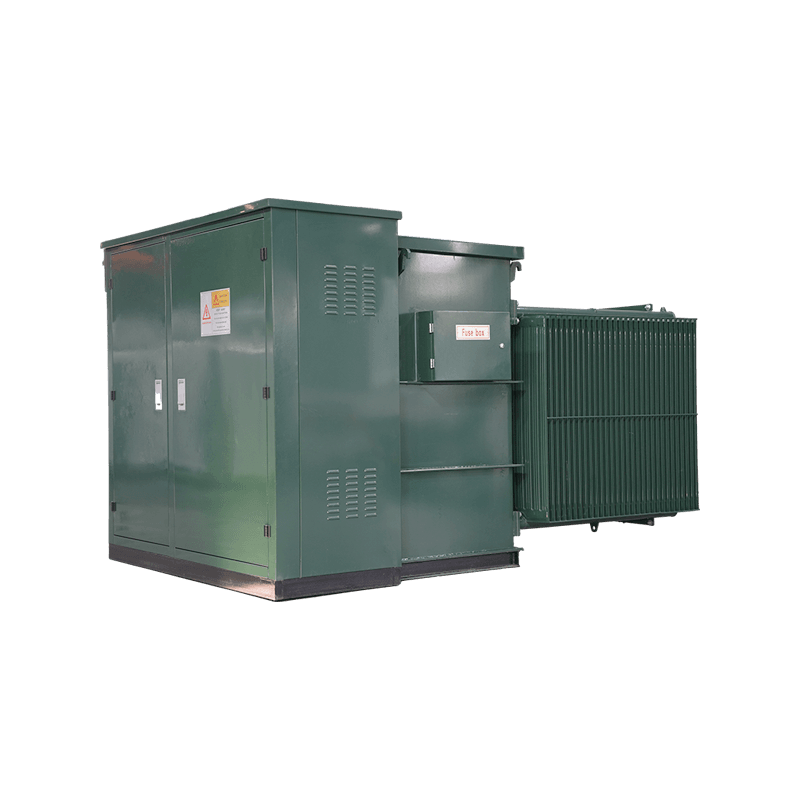

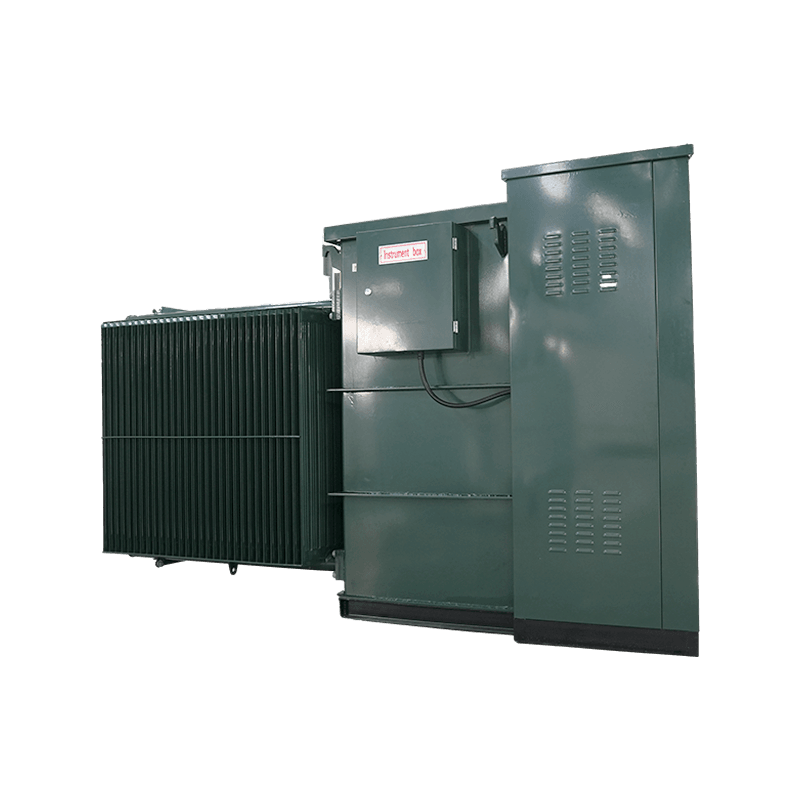

Product Overview： ZGS series combined transformer is a series of products developed according to the needs of urban multi-grid construction and development. It is a combination of transformer body, switchgear, fuse, tap changer, paper pressure distribution device, and other auxiliary equipment, which can meet the user's power metering, reactive power supplement, low voltage shunt, and other configuration requirements. 2GS type combined transformer as an AC 50Hz, 6-10kV power grid, rated capacity of 30-1600kVA independent complete sets of power distribution devices, can be used outdoors, can also be used indoors. Widely used in industrial parks, urban residential areas, commercial centers, road lighting, high-recruit buildings and temporary construction sites, and other places, its advantages are environmental protection, small footprint, and convenient installation.  Product Characteristics： Small size, compact structure, small footprint, easy to install. Low saving, low noise, low-temperature rise, super capacity load capacity, strong ability to resist sudden short circuits. The wiring mode is flexible, which can be used for the final step system or the ring network system, the conversion is convenient and the reliability of the power supply is improved. The operator makes easy maintenance, production cycle class, and low project cost. Adapt to the scene: Urban public power distribution, high-rise buildings, residential areas, ports, oil fields, parks, stations, airports, subways, highways, and other power supply places.
Get A Quote
PREV：ZGS Type Combined TransformerNEXT：No next article
  • Parameter
  • Contact Us

  • Name

    Unit

    		 Argument
    Rated voltage

    Primary side

    KV

    10/20/35



    		 Secondary side

    KV

    0.4
    Maximum operating voltage

    KV

    12/24/40.5
    Rated frequency

    HZ

    50
    Rated capacity

    KVA

    100、125、160、200、250、315、400、500、630、800、1000、1250、1600
    1 minute power frequency withstand voltage

    KV

    42/65/95 (without transformer) 35/55/85 (transformer)
    BIL shock withstand voltage

    KV

    75/125/185 Oil immersed self-cooling
    Cooling mode





    No load voltage regulation

    kV

    10/20/35 ± 2x2.5%
    Ambient temperature

    ℃

    -45~+40
    The transformer allows the top oil temperature to rise



    ≤55
    Temperature rise of transformer low voltage winding

    K

    ≤65
    Temperature rise of transformer high voltage winding

    K

    ≤65
    Noise level

    dB

    ≤55
    Class of protection



    IP33D

Related Products

About HUBANG

Jiangsu Beichen Hubang Electric Power Co., Ltd. is a professional manufacturer with 16 years of transformer manufacturing experience.

Our Company is China ZGS Type Combined Transformer Suppliers and ZGS Type Combined Transformer Factory. In order to better respond to the market situation, vigorously invest in silicon steel production projects, as the upstream product of transformers, silicon steel production and manufacturing project Silicon steel production and manufacturing project will be completed in two phases, the of the project has been tested in March 2022, to achieve an annual output of 25,000 tons of silicon steel, the second phase of the project will cooperate with Wisco to develop more high-end brands, silicon steel production capacity is expected to reach 80,000 tons. After the full volume of the project, the transformer industry will achieve a larger scale and achieve a stronger competitive advantage with the high-quality development of the manufacturing industry. Secondly, our company has developed a core intelligent stacking machine after three years to improve the quality and efficiency of iron core stacking. Last year, our company introduced the industrial precision welding robot arm to improve the welding process of transformer oil tank and complete the welding work of transformer oil tank with high quality and quantity.

Finally, Hubang Power's new factory intelligent workshop will be ready to put into operation in 2024, to achieve the full line of intelligent production of transformers as much as possible, which will greatly improve the efficiency of transformer products and increase the quality of related products.

Mission: Make power transmission safer and more energy efficient, and promote the development of China's high-end power equipment industry.
Vision: To become a highly trusted power equipment manufacturer.
Core values: scientific and technological innovation, unity and cooperation, continuous struggle, harmonious coexistence.
Jiangsu Beichen Hubang Electric Power Co., Ltd.

We’re a reliable partner that shapes our expertise into success for your project.

Certificate Of Honor

News
Industry Knowledge
1. Unveiling the Ingenious Design of ZGS Type Combined Transformers
ZGS Type Combined Transformers represent a pinnacle of ingenuity in the field of power distribution. Their design is a symphony of engineering principles meticulously crafted to meet the evolving demands of modern electrical systems. At the heart of the ZGS Type is a fusion of transformer components, carefully optimized for efficiency and reliability.
The core design of ZGS Type Combined Transformers involves the integration of various elements such as high-quality magnetic cores, advanced insulation materials, and innovative cooling systems. These transformers are engineered to minimize energy losses during the transmission process, ensuring that the electricity reaches its destination with minimal waste.
One notable feature is the compact design, allowing for space-efficient installations. The ZGS Type's compactness is achieved without compromising performance, making it a preferred choice for applications where space optimization is crucial. Engineers have meticulously balanced factors like size, weight, and performance to create a transformer that seamlessly integrates into diverse electrical infrastructures.
Furthermore, the ZGS Type's design incorporates safety features to mitigate potential risks associated with electrical distribution. Robust insulation systems and fault detection mechanisms contribute to the transformer's ability to operate safely under varying conditions. Understanding the intricacies of the ZGS Type's design unveils the engineering brilliance that makes it a reliable cornerstone in power distribution networks.

2. Efficiency Redefined: The Technological Advancements of ZGS Type Combined Transformers
The technological landscape of ZGS Type Combined Transformers reflects a commitment to efficiency and adaptability. As the demand for cleaner and more reliable energy grows, these transformers leverage advanced technologies to redefine industry standards.
One key technological advancement is the integration of smart monitoring and control systems. ZGS Type transformers utilize digital sensors and communication protocols to provide real-time data on their operational status. This not only allows for proactive maintenance but also contributes to the overall health monitoring of the electrical grid.
The use of cutting-edge insulation materials is another notable feature. These materials enhance the transformer's resilience to high temperatures and environmental challenges, ensuring prolonged service life. ZGS Type transformers are equipped to handle the demands of modern power distribution systems, offering increased efficiency and reduced environmental impact.
Additionally, advancements in materials and manufacturing processes contribute to the transformer's overall performance. The use of eco-friendly materials aligns with global sustainability goals, positioning ZGS Type transformers as environmentally conscious components in power distribution networks.

3. ZGS Type Combined Transformers: Meeting the Challenges of Modern Power Grids
In the dynamic landscape of modern power grids, ZGS Type Combined Transformers rise to the occasion, addressing challenges and contributing to grid resilience. These transformers are designed to navigate the complexities of contemporary energy needs, offering solutions to critical issues faced by power distribution systems.
One significant challenge is grid stability, especially in the face of increasing renewable energy integration. ZGS Type transformers play a crucial role in stabilizing the grid by efficiently managing power flow, voltage levels, and frequency variations. Their adaptability to fluctuating loads ensures a stable and reliable power supply, even in environments with intermittent renewable energy sources.
ZGS Type transformers are also engineered to handle the environmental challenges associated with power distribution. Enhanced cooling systems contribute to efficient heat dissipation, maintaining optimal operating temperatures and prolonging the lifespan of the transformer. This resilience makes ZGS Type transformers suitable for deployment in diverse geographical locations and climates.
Moreover, the transformers contribute to environmental sustainability by minimizing energy losses during distribution. Their efficiency in energy transfer aligns with global initiatives to reduce carbon footprints and enhance overall energy efficiency.
Real-world applications showcase the versatility of ZGS Type Combined Transformers. Whether deployed in bustling urban centers or remote areas, these transformers consistently demonstrate their adaptability to varying operational demands. Case studies highlight instances where ZGS Type transformers have played a pivotal role in ensuring a reliable power supply, contributing to the overall stability and sustainability of modern power grids.
