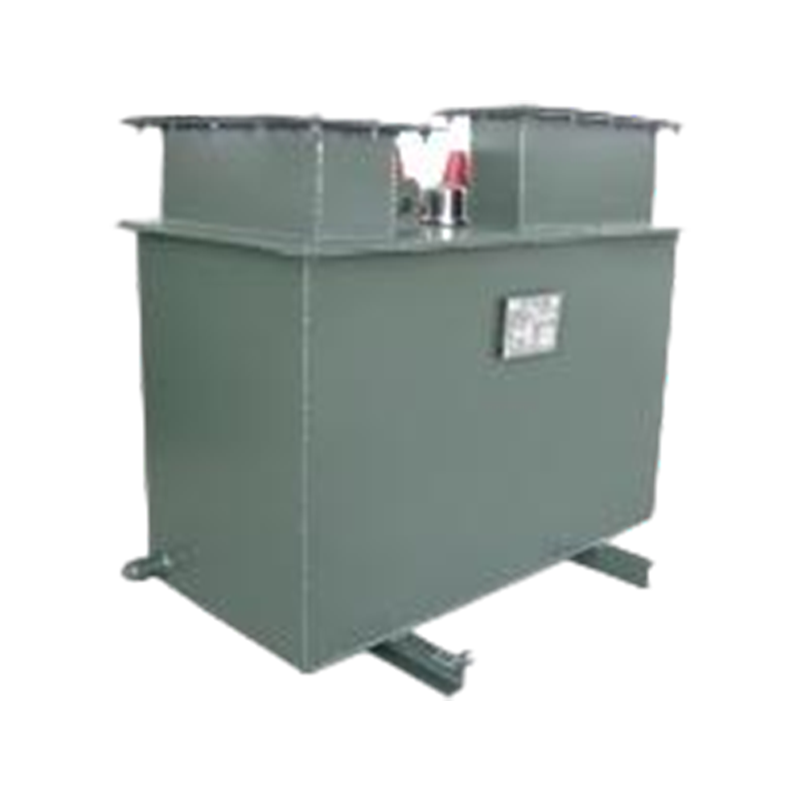

S13-M.D Type Underground Transformer
S13-M.D Type Underground Transformer

S13-M.D Type Underground Transformer

Product Overview: Underground transformer: a distribution transformer or combined transformer that can be installed in a pit. It is generally installed in the pit, does not occupy the effective space on the surface, does not affect the visual effect, makes the power supply equipment and the surrounding environment harmonious and unified, and can avoid inadvertent or intentional damage by the outside world, and the impact on the surrounding environment and personnel of the equipment can also be reduced to a minimum. With the deepening of urban development and urban power grid transformation, underground transformers that are safe, reliable, and do not occupy surface space are gradually applied in road lighting, civil power, and electricity in central urban areas Airports, city squares, highways, Bridges, tunnels, etc. Product characteristics: Suitable for urban environments (installed in basements or urban pipes), especially in densely populated central cities; Suitable for streets, highways, Bridges, tunnels, parking lots, airports, ports, tourist attractions, and other lighting and power systems; The high and low-voltage inlet and outlet lines are waterproof, fully sealed, fully insulated, and fully shielded. The box shell is made of anti-corrosion steel plate or stainless steel, fully sealed, and can be immersed in water for a period of time; The protection system fully considers the convenience and safety of operation, and the accessories are made by American COOPER Company or domestic high-quality products with the same performance; The operation rod is used to operate the underground transformer, which has the same operation mode as the combined transformer. Considering the particularity of heat dissipation conditions, the transformer adopts low-loss and low-temperature design; Install waterproof entry protection and automatic drainage measures in the transformer cellar.
Get A Quote
PREV：No previous articleNEXT：No next article
  • Parameter
  • Contact Us
  • Waterproof measures for underground transformers:
    1. Waterproof consideration in basic design and production
    Top: ventilation hole with effective rain and waterproof ability;
    The reverse part: the two surfaces are treated with waterproof concrete material so that water seepage cannot invade from the side of the pit;
    Bottom: The waterproof concrete load-bearing base installed with the underground transformer is 300mm higher than the bottom of the pit, and the water flowing from the ground to the pit usually flows to the ring below the base, and will not soak into the underground transformer.
    2, the bottom of the foundation is laid with water sand pebbles, so water can penetrate the ground faster.
    3, the underground transformer limit allows the operation of submerged water below 0.5m within a certain period of time, which can overcome flood disasters and effectively improve the reliability of the power supply system. However, in order to ensure the safe and reliable operation of the underground transformer, it is recommended to check the water in the pit after the flood, long-term storms, and rainy season, such as more water, it is recommended to take pumping and cleaning.

    Measures for temperature rise control of underground transformer
    1, transformer low-temperature rise design, the top oil temperature control profit is about 45K, lower than the national standard of 60K, the design idea is:
    (1) The heat load is directly proportional to the loss. The raw materials used in the underground transformer blue designed and produced by our company are low-loss products. Compared with GB6451-1999, the no-load loss is 30% lower and the load loss is 15% lower. Compared to the 9 series, the no-load loss is 20% lower, so the heat load is low.
    (2) The use of naphthenic transformer oil, without adding additives can make the oil medium flow freely under very low abuse, and its good viscosity-time characteristics make the oil flow speed up when the temperature rises, to ensure that the product has good heat dissipation capacity.
    2. Box structure
    Underground transformer tank wall heat dissipation mainly depends on radiation. Heat always radiates from the heating body in the form of waves into the surrounding medium at a lower temperature. The energy of the radiation depends on the temperature, the shape of the heating body, and its surface color. Therefore, the underground transformer is used for a flat fuel tank and flat heating sheet to enhance auxiliary emissions.
    3, surface treatment;
    Because the underground transformer body is installed under a cool surface, the special surface treatment process is used to ensure that it has good heat radiation capacity and strong corrosion resistance.
    4. Basic production
    The heat dissipation between the foundation and the outside world depends on heat conduction and air convection, and the top of the foundation can be provided with vents and wind deflectors to strengthen air circulation.
